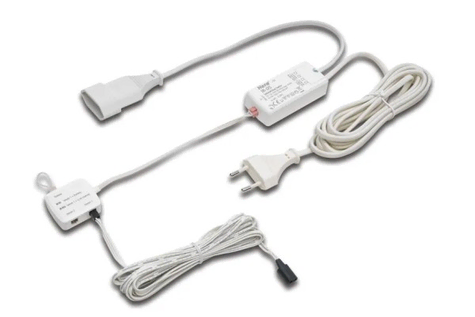

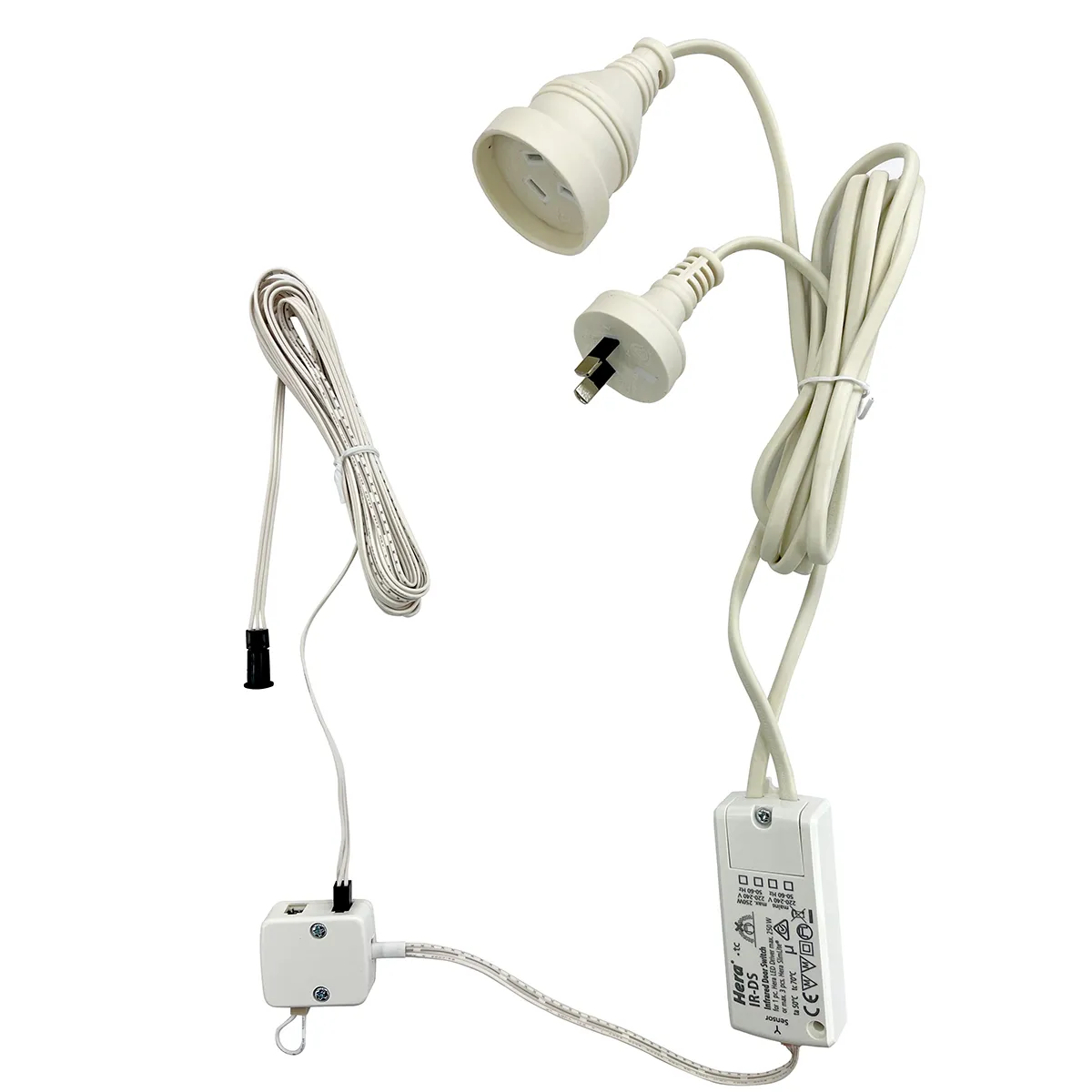

HERA SWITCH SENSOR IR-DS DOOR SENSOR SINGLE K80

Product Code: 7104567
$234.66
Includes GST
Trade customers sign in to view account pricing

Quantity

Quantity has been updated based on minimum order quantity
Quantity has been updated based on minimum order quantity of 1

UNIT OF MEASURE:  1 = 1 Each

UNIT OF MEASURE:  1 = 1 null

AT

Sensor

Recommended Uses

  • Within Internal Commerical or Residential Joinery

Infra-Red door motion activated switch, opening the door switches the light on and shutting the door turns it off
Clearance between door and sensor must be a minimum of 4mm to ensure sensor activity
Clearance between door and sensor can vary between 4mm and 50mm depending upon surface finish
Items that offer reflection must be no closer than 100mm to the sensor
Automatically switches off after 30 minutes
Single switch - adhesive surface mounting
Connection: 230-240V/50Hz
Output 550W

Product Attributes

UOM Information

1 = 1 Each
Kit No
Brand Name Hera
Colour White
Supplier Code 50612080323
Rooms and Spaces Multi Residential

Installation Dimensions

Size 6mm

Product Dimensions

Width in Metric 14mm
Height 6mm

Power

Voltage 230-240

Compliance

Standard AS/NZS 61347.2.11:2003 & AS/NZS 61347.1:2016+A1
Certification Number AZ 69023494
Certification Effective May 23, 2019, 12:00:00 AM
Certification Expiry May 23, 2024, 12:00:00 AM

Catalog

Catalogue Code 1-631-154
Product Class Sensor Switches
Product Type Single Door
